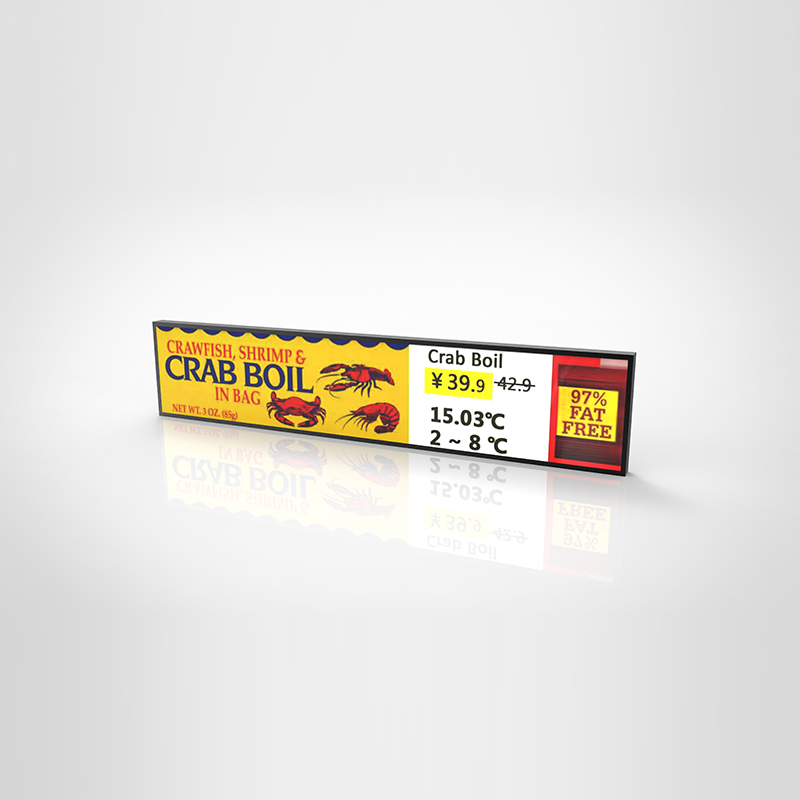

VMBD2305-1 Strip Screen
01
Easy to Install
No professional training is required, and it is easy to get started.
02
Safe and Stable
Adopts MQTT certificate encryption and MD5 checksum to ensure safety and stability.
03
Ultra-Low Power Consumption
System-level low power consumption technology, combined with advanced domestic heat dissipation technology.
04
Durable
Waterproof, moisture-proof, and shockproof with a triple industrial design.
05
Powerful performance
Support price tags, program tags, activity tags, and batch display
06
reen and Environmentally Friendly
Designed with food-grade materials to address environmental issues.
| project | Parameters and specifications |
| CPU | Rockchip PX30 Quad core ARM Cotex-A35 Main frequency 1.5G |
| Memory/RAM | 1G DDR3(1G/2G optional) |
| Built-in storage/ROM | 8G EMMC(8G/16G/32G/64G) |
| External storage | Maximum support for 64GB TF memory card |
| Operating system | Android 8.1 |
| Network | Support 2.4G wireless WIFI access |
| Time clock | Support timed power on/off function |
| Interface | 1*micro USB(OTG)，1*TF card,1*Type-c(DC Used for 12V power supply) |
| Size | 23.5"LCD Panel |
| Resolution | 1920(V)x360(H) |
Work environment | Temperature：0℃～45℃ Humidity： 10%～85% Atmospheric Pressure： 86KPa～104KPa |
