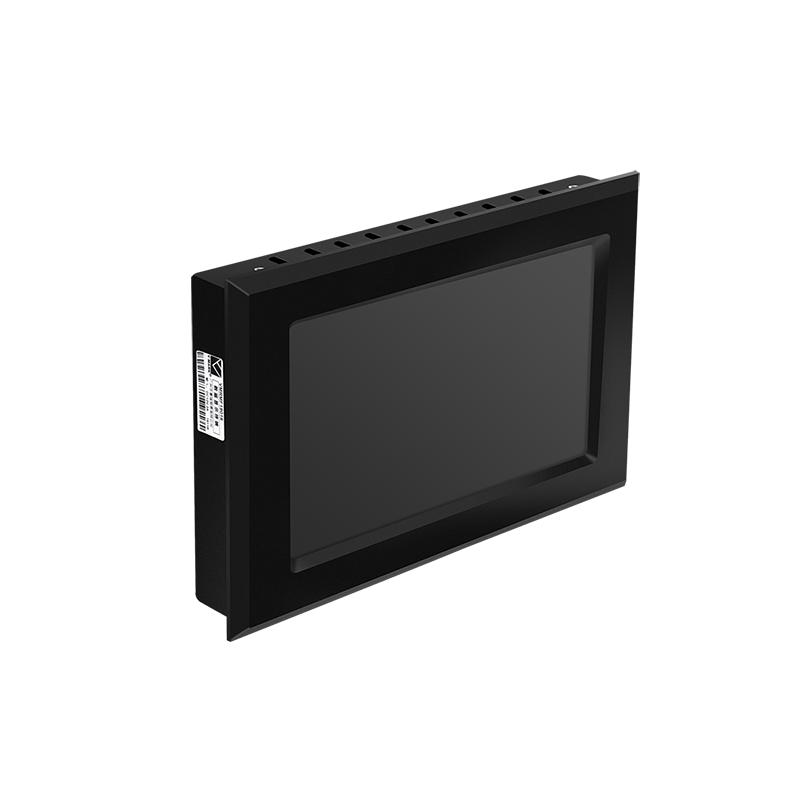

Industrial-Grade Wireless Display Screen

Application Fields: Temperature monitoring in cold chain vehicle transportation, refrigerators, cold storage, supermarkets, stores, medical institutions, laboratories, etc.

Product characteristics

Easy to Operate

Users can complete device configuration and remote data reading through the mini program.

Easy Installation

The thermometer node automatically joins the network after activation, eliminating the hassle of wired connections, ensuring quick and easy installation.

Easy Maintenance

Zigbee network’s self-organizing and self-healing features make sensor network maintenance simple.

Easy Expansion

Zigbee network allows easy expansion to other sensors, such as door magnets.

Product parameter

Project	Parameters and specifications
Maximum communication distance	Outdoor visible distance of 200 meters Indoor visible distance of 100m
Remote setting	Wireless connection signal indication Network access sound prompt Key sound prompt
Communication network	ZigBee Mesh network
RF transmission power and sensitivity	oTX: +17dBm RX: -99dBm， RSSI> -90dBm Indicates that the signal can receive data
Environmental requirements	Working temperature: -20~+70 ℃ Storage temperature: -30 to+80 ℃ Vibration test: 10 to 25Hz (2G in X, Y, Z directions for 30 minutes) ESD test: Air=± 8KV, Contact=± 4KV High and low temperature testing: Temperature: 60 ℃± 3 ℃ 72H/-10 ℃± 3 ℃ 72H Humidity: 50 ℃± 3 ℃, 90% ± 3% RH 72H
Appearance characteristics	Size: Display Area - Length x Width 15.3cm x 8.6cm Product dimensions - length x width x height 21cm x 13.5cm x 3.3cm Weight: 480g

Successful case

Cold Chain Temperature Monitoring Deployment in a Large North American Chain Supermarket

The project deployed over 600,000 wireless temperature sensors within three years, accompanied by more than 60,000 gateways. In subsequent deployments, over 290,000 wireless temperature sensors and 27,000 gateways were installed. Engineers participated throughout the site survey, installation, and commissioning, equipping all stores across the United States with cold chain equipment and temperature monitoring systems.

Cold Chain Temperature Monitoring Deployment for a Leading Pharmaceutical Company in South China

Over 300 temperature and humidity sensors were deployed for third-party data monitoring of pharmaceuticals. The equipment has been operating stably for over six years, with regular sensor calibration and a calibration pass rate of 99%. It also provides data report export and automatic data printing.
